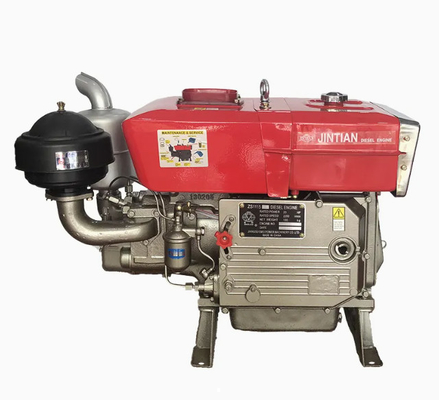

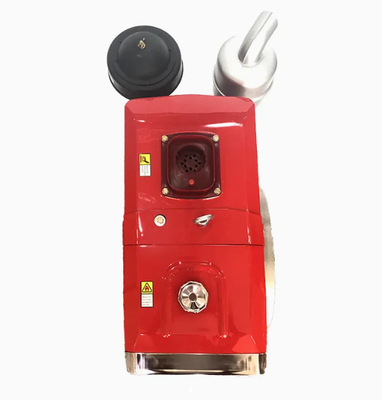

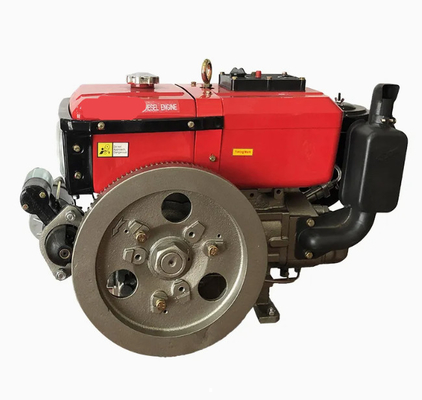

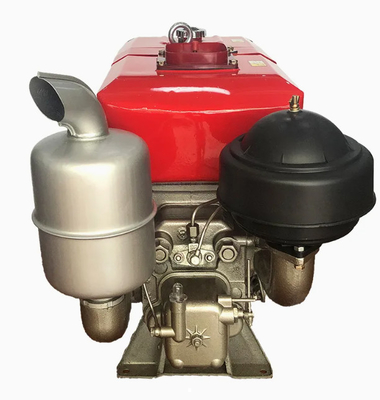

High-Efficiency ZS1115 20HP Diesel Engine – Built for Agricultural Use, Water Cooling, Strong & Stable Performance

Product Description

The ZS1115 series single-cylinder diesel engine adopts a direct injection system for excellent starting performance and superior fuel efficiency. Featuring a water-cooled design and electric start option, it combines reliable power with user-friendly operation.

With a robust structure, mature technology, and durable components, the ZS1115 engine is built for long service life and dependable performance in a wide range of working environments.

Applications:
Ideal for powering small tractors, agricultural machinery, generator sets, water pump units, compact construction machines, air compressors, inland river boats, and agricultural product processing equipment.

Key Features:

• Direct injection for fast start-up and fuel economy

• Water-cooled system for stable and efficient heat dissipation

• Electric start for easy operation, especially in cold or demanding conditions

• Durable and low-maintenance design backed by proven engineering

• Versatile power solution for both agricultural and light industrial useModel ZS1115TT ZS1115TTM ZS1115 ZS1115M ZS1115NL ZS1115NML Type Single Cylinder, Horizontal , 4-Stroke Engine Lubrication method Combined Pressure And Splashing Cooling method HOPPER RADIATOR Combustion System Direct injection Starting System hand-start electric start hand-start electric start hand-start electric start Rated power 20HP/14.7KW Rated speed 2200RPM Bore x Stroke 115x115mm Net weight(kg) 185 185 185 185 185 185 Gross weight(kg) 205 205 205 205 205 205 Displacement 1.195L Fuel comsumption 254.2g/kW·h Oil comsumption 1.7g/kW·h Fuel tank capacity 8L Packing size 92x44x57cm 92x44x59cm 92x44x76cm Packages/20Ft container 128 128 96
