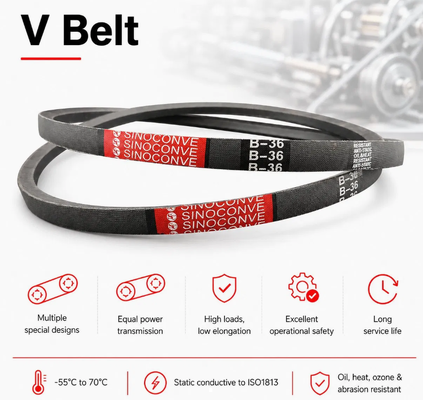

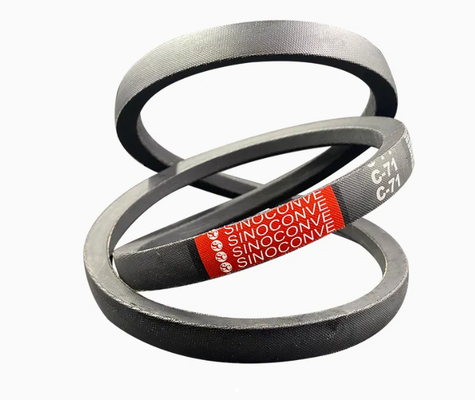

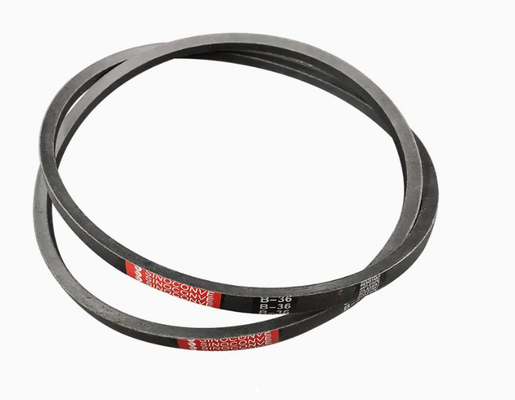

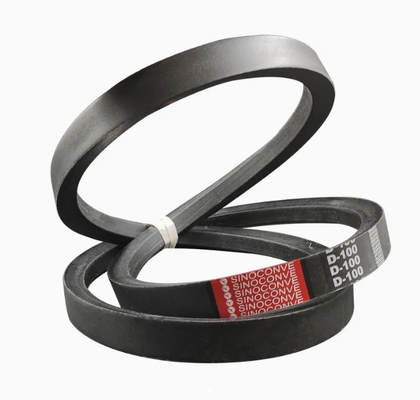

igh Quality Transmission V Belt EPDM Engine Belt Timing Belt Conveyor Belt Auto Spare Parts Pj pH Pm Pk Pl Rubber Fan Belt Poly Ribbed V Belt for Engine Parts

Brand Name:	OEM
Model Number:	V
MOQ:	1 pcs
Payment Terms:	T/T
Supply Ability:	10000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001

Packaging Details:

Wooden case

Supply Ability:

10000pcs per month

Product Description

igh Quality Transmission V Belt EPDM Engine Belt Timing Belt Conveyor Belt Auto Spare Parts Pj pH Pm Pk Pl Rubber Fan Belt Poly Ribbed V Belt for Engine Parts


T-TYPE toothed timing belt	TYPE	Pitch	Booth adge	Bottom tooth thickness	Tooth height	Fillet	Tip	Belt thickness	teeth number range
T-TYPE toothed timing belt	TYPE	Pb	2y°	s	hg	rr	ra	H	teeth number range
	MXL	2.023	40	1.14	0.51	0.13	0.13	1.14	43~2044
	XXL	3.175	50	1.73	0.76	0.20	0.20	1.52	46~124
	XL	5.085	50	2.57	1.27	0.38	0.38	2.3	22~510
	L	9.525	40	4.65	1.91	0.51	0.51	3.6	23~530
	H	12.700		6.12	2.29	1.02	1.02	4.3	29~440
	XH	22.225		12.57	6.35	1.57	1.57	11.2	53~220
	XXH	31.750		19.05	9.53	2.29	2.29	15.7	56~144
	T2.5	2.5	40	1.50	0.70	0.2	0.2	1.3	42~312
	T5	5		2.65	1.20	0.4	0.4	2.2	30~400
	T10	10		5.30	2.50	0.6	0.6	4.5	34~536
	T20	20		10.15	5.00	0.8	0.8	8.0	61~181
HTD-TYPE toothed timing belt	TYPE	Pitch	Booth adge	Bottom tooth thickness	Tooth height	Fillet	Tip	Belt thickness	teeth number range
HTD-TYPE toothed timing belt	TYPE	Pb	2y°	s	hg	rr	ra	H	teeth number range
	3M	3	14	1.78	1.17	0.24-0.30	0.87	2.4	35~1000
	5M	5		3.05	2.06	0.40-0.44	1.49	3.8	35~852
	8M	8		5.15	3.36	0.64-0.76	2.46	6.0	36~565
	14M	14		9.40	6.02	1.20-1.35	4.50	10.0	56~340
	20M	20		14.00	8.40	1.77-2.01	6.50	13.20	100~260
STPD/STS-TYPE toothed timing belt	TYPE	Pitch	Bottom tooth thickness	Tooth height	Fillet radius	Fillet	Tip	Belt thickness	teeth number range
STPD/STS-TYPE toothed timing belt	TYPE	Pb	s	hg	rbb	rr	ra	H	teeth number range
	S2M	2	1.3	0.76	1.3	0.20	0.20	1.36	44~1914
	S3M	3	1.95	1.14	1.95	0.30	0.30	1.94	41~500
	S4.5M	4.5	2.93	1.71	2.93	0.45	0.45	2.81	40~201
	S5M	5	3.25	1.91	3.25	0.50	0.50	3.41	30~560
	S8M	8	5.20	3.05	5.20	0.80	0.80	5.30	53~500
	S14M	14	9.10	5.30	9.10	1.40	1.40	10.2	69~322
RPP/HPPD-TYPE toothed timing belt	TYPE	Pitch	Bottom tooth thickness	Tooth height	Belt thickness	teeth number range	Pitch length
RPP/HPPD-TYPE toothed timing belt	TYPE	Pb	s	hg	H	teeth number range	Pitch length
	P2M	2	1.30	0.73	1.3	56~612	112.00~1224.00
	P3M	3	1.95	1.09	2.1	30~621	90.00~1863.00
	P5M	5	3.25	1.81	3.6	36~400	180.00~2000.00
	P8M	8	5.20	2.90	5.5	40~550	320.00~4400.00
	P14M	14	9.50	6.00	10.0	69~327	966.00~4578.00

igh Quality Transmission V Belt EPDM Engine Belt Timing Belt Conveyor Belt Auto Spare Parts Pj pH Pm Pk Pl Rubber Fan Belt Poly Ribbed V Belt for Engine Parts
