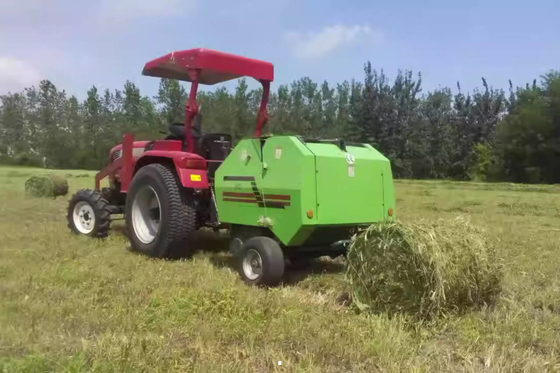

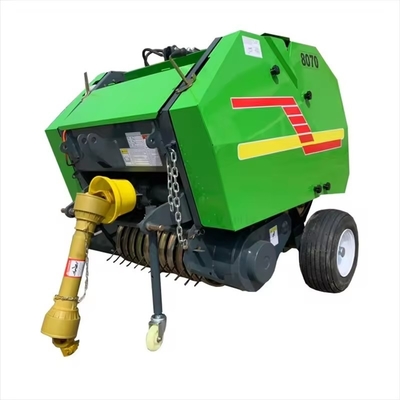

Introduction of hay baler:
1. The hay baler is used for collecting wrapping and baling variety of
materials,such as rice and straw hay & forage.
With the hydraulic mechanism,the machine can open the tailgate and
ejectthe finished bale automatically.
2. The hay baler is reliable, simple in structure and easy to operate.
The baler is small in size and easy to transport.
It can successively complete the works of picking up & feeding,
bundling & compact, rope distrbution, unloading grass bale etc.
Type | YK-0850 | YK-0870 | YK-0910 |
Bale dimension diameter*width (mm) |
φ500×700 | φ610×700 | φ850×900 |
Overall dimension L*W*H (mm) |
1150×1300×1200 | 1300×1300×1350 | 2450×1850×1600 |
Weight(KG) | 390 | 440 | 930 |
Working width (cm) | 80 | 80 | 90 |
Working speed (km/h) | 2-5 | 2-5 | 5-8 |
Tire size(PR) | 16×6.50-8-4 | 16×6.50-8-4 | 16×6.50-8-4 |
Fitted motor | 15-50HP tractor | 25-80HP tractor | 30- 100HP tractor |
Fitted PTO rotation (r/min) | 540 | 540 | 540 |
Selling Units: |
Single item |
Single package size: | 115X100X120 cm |
Single gross weight: | 390.0 KG |
Package Type: | Iron frame packing or Wooden packing. For one sample 1150mmx1000mmx1200mm iron frame package with film dustcover. For container then 2pcs in one 1150mmx1050mmx2450mm iron frame package with film dustcover. |
