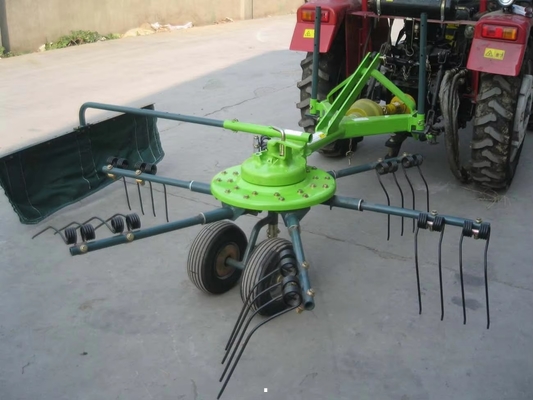

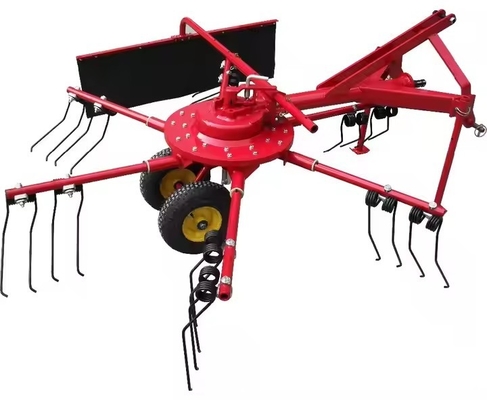

Pto Driven Hay Rake 9LD Rotary Hay Rake Tedder – Tractor-Mounted Farm Grass Equipment

Name: Pto Driven Hay Rake 9LD Rotary Hay Rake Tedder – Tractor-Mounted Farm Grass Equipment
Brand: Anshan Anza Electronic Power Co.,Ltd.
Availability: InStock

Brand Name:	OEM
MOQ:	1 pcs
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Product Description

The Rake Tender is the ideal machine for smaller farms seeking a versatile, all-in-one solution. With its low power requirement, it can be easily operated by even a compact tractor. The tines unfold effortlessly through centrifugal force, ensuring smooth operation.

Switching between turning and raking is simple — just adjust the position of the joints between the pivoting tines. The Rake Tender comes equipped with balloon tires for enhanced stability and is supplied with a PTO drive shaft as a standard feature, making it a reliable and efficient addition to your farm equipment.

Model	9LD-2.5	9LD-3.5	9LD-4.0	9LD--5.0
Working width(mm)	2500	3500	4000	5000
No.of wheel(pcs)	1	1	1	2
Matched Power(hp)	25-40	30-50	40-60	50-80
Dimensions(mm)	21002500950	310035001000	401035501200	35005000950
Weight(kg)	160	200	300	650
Operating speed(km/h)	6-12	6-12	6-12	6-12
Structure type	spiral	spiral	spiral	spiral
Linkage	Three-point suspension			Traction
Working control mode	Three-point suspension			hydraulic oil cylinder
