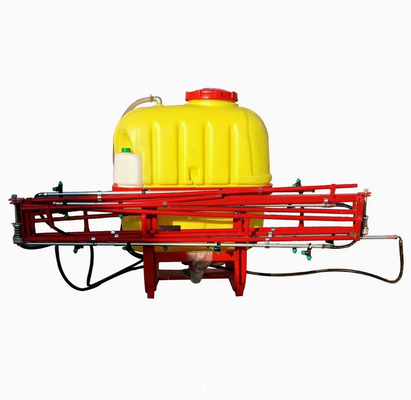

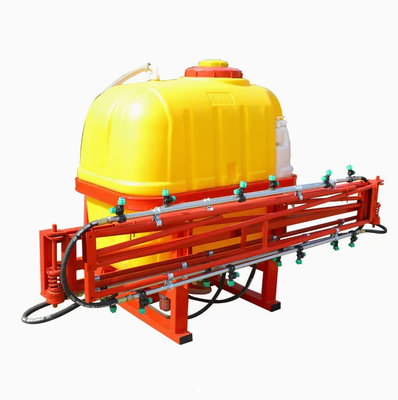

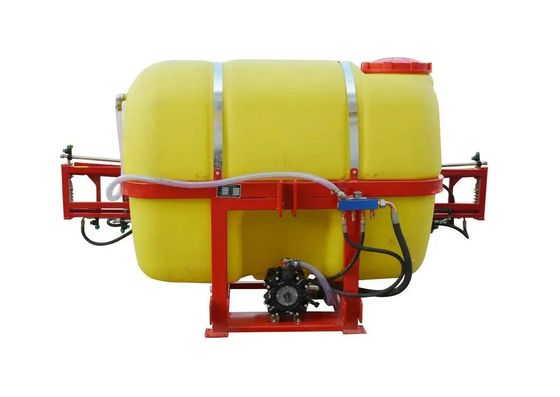

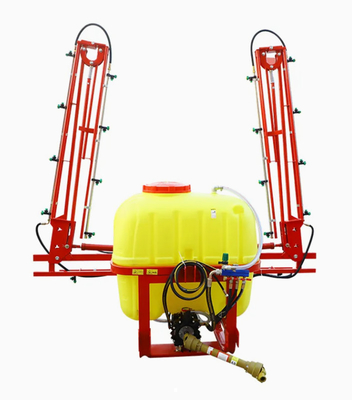

CE Certificate with Agricultural Machinery of Sprayers Hydraulic Boom Sprayer 200L-1000L
  • CE Certificate with Agricultural Machinery of Sprayers Hydraulic Boom Sprayer 200L-1000L
  • CE Certificate with Agricultural Machinery of Sprayers Hydraulic Boom Sprayer 200L-1000L
  • CE Certificate with Agricultural Machinery of Sprayers Hydraulic Boom Sprayer 200L-1000L
  • CE Certificate with Agricultural Machinery of Sprayers Hydraulic Boom Sprayer 200L-1000L
CE Certificate with Agricultural Machinery of Sprayers Hydraulic Boom Sprayer 200L-1000L

CE Certificate with Agricultural Machinery of Sprayers Hydraulic Boom Sprayer 200L-1000L

Place of Origin CHINA
Brand Name OEM
Certification ISO9001
Model Number 3W
Product Details
Payment & Shipping Terms
Minimum Order Quantity
1 pcs
Packaging Details
Wooden case
Delivery Time
15-20 days
Payment Terms
T/T
Supply Ability
10000pcs per month
Product Description
Product Description

In large-scale farming, the boom sprayer is the most prevalent form of herbicide application device.

A boom sprayer has many components, the most important being the nozzles, which split the herbicide into

many small droplets that are projected through the air to the target. So our boon sprayer is special designed for

spraying pesticides, insecticides and fertilizer directly on crops.

Model Structure Dimension
(MM)		 Max Capacity
(L)		 Matched Power
(HP)		 Spray Rod Length
(MM)		 Working Pressure
(Mpa)		 Rated Flow
(L/Min)		 Working Rate
(Area/H)
3WPX-400-8 Mounted Type 1880*1140*1240 400 ≥40 8000 0.8-1.0 60-80 20
3WPX-500-12 Mounted Type 2700*1100*1300 500 ≥40 12000 0.8-1.0 60-80 35
3WPX-600-8 Mounted Type 2200*1190*2300 600 ≥50 8000 0.8-1.0 80-100 20
3WPX-600-12 Mounted Type 2700*1100*1440 600 ≥50 12000 0.8-1.0 80-100 35
3WPXY-600-12 Mounted Type 2700*3300*1400 600 ≥50 12000 0.8-1.0 80-100 35
3WPX-800-12 Mounted Type 2700*1140*1500 800 ≥60 12000 0.8-1.0 80-100 35
3WPX-800-18A Mounted Type 3000*3000*1500 800 ≥60 18000 0.8-1.0 190 45
3WPXZ-800-18 Mounted Type 3100*3100*1800 8000 ≥60 18000 0.8-1.0 190 45
3WPX-1000-12 Mounted Type 2700*1000*1530 1000 ≥60 12000 0.8-1.0 80-100 35
3PWX-1000-18 Mounted Type 3100*3300*2100 1000 ≥80 18000 0.8-1.0 190 45
3WPX-1200-22 Mounted Type 4200*3600*2400 1200 ≥80 22000 0.8-1.0 215 55
3WPX-1200-24 Mounted Type 2400*2100*2900 1200 ≥90 24000 0.8-1.0 215 55



CE Certificate with Agricultural Machinery of Sprayers Hydraulic Boom Sprayer 200L-1000L 0

CE Certificate with Agricultural Machinery of Sprayers Hydraulic Boom Sprayer 200L-1000L 1



CE Certificate with Agricultural Machinery of Sprayers Hydraulic Boom Sprayer 200L-1000L 2

CE Certificate with Agricultural Machinery of Sprayers Hydraulic Boom Sprayer 200L-1000L 3



CE Certificate with Agricultural Machinery of Sprayers Hydraulic Boom Sprayer 200L-1000L 4

CE Certificate with Agricultural Machinery of Sprayers Hydraulic Boom Sprayer 200L-1000L 5

CE Certificate with Agricultural Machinery of Sprayers Hydraulic Boom Sprayer 200L-1000L 6

CE Certificate with Agricultural Machinery of Sprayers Hydraulic Boom Sprayer 200L-1000L 7

CE Certificate with Agricultural Machinery of Sprayers Hydraulic Boom Sprayer 200L-1000L 8





CE Certificate with Agricultural Machinery of Sprayers Hydraulic Boom Sprayer 200L-1000L 9

CE Certificate with Agricultural Machinery of Sprayers Hydraulic Boom Sprayer 200L-1000L 10

CE Certificate with Agricultural Machinery of Sprayers Hydraulic Boom Sprayer 200L-1000L 11

CE Certificate with Agricultural Machinery of Sprayers Hydraulic Boom Sprayer 200L-1000L 12

CE Certificate with Agricultural Machinery of Sprayers Hydraulic Boom Sprayer 200L-1000L 13

CE Certificate with Agricultural Machinery of Sprayers Hydraulic Boom Sprayer 200L-1000L 14

CE Certificate with Agricultural Machinery of Sprayers Hydraulic Boom Sprayer 200L-1000L 15
