Source Factory Agriculture Machinery Disc Harrow Blade Plough Plow Parts 65mn Disk Blades for Agriculture Tillage 510mm 560mm 610mm 660mm 710mm Customizable

Brand Name:	OEM
Model Number:	all
MOQ:	1 pcs
Payment Terms:	T/T
Supply Ability:	10000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001

Packaging Details:

Wooden case

Supply Ability:

10000pcs per month

Product Description

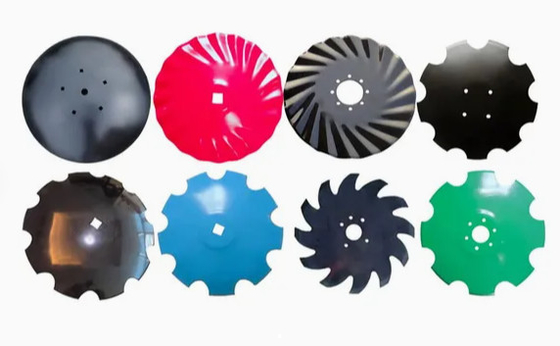

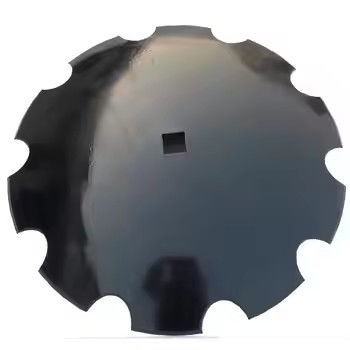

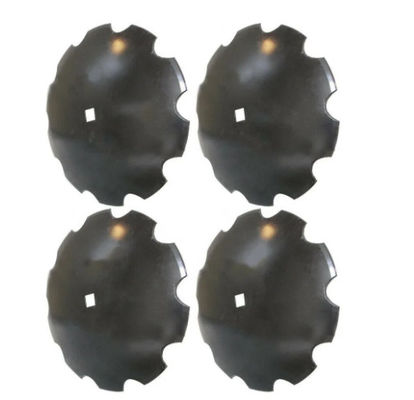

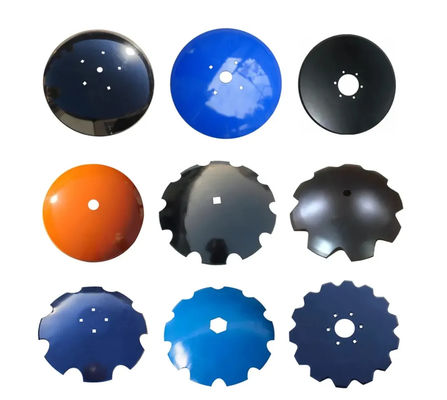

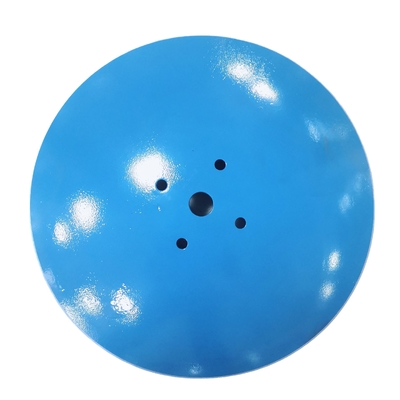

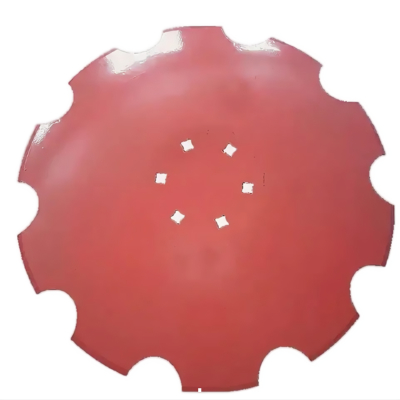

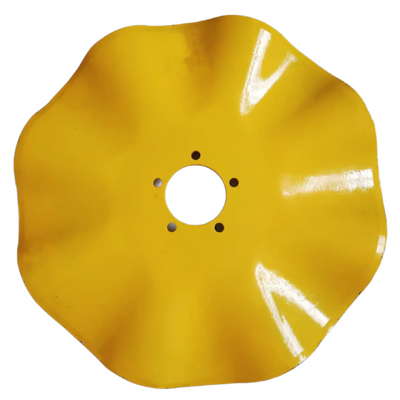

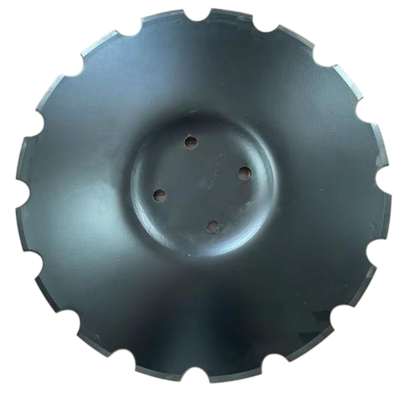

Disc blade are suitable for disc harrow and agricultural machine, as usual teh material is 65Mn spring steel

and 40MnB steel.

As usual 65Mn spring steel hardness is 40-45HRC, 40MnB steel hardness is 43-48HRC. We are able

to producting alot of kinddisc blade, max diameter is 46inch(1170mm).

Material:	65Mn,Boron steel
Hardness:	HRC38-45, HRC43-48
Thickness:	3.0-12.5mm
Size/dimension:	12"-44"(300mm-1120mm)
Edge of Disc Blade:	Round or Notched.
Shape:	Flat,Concave or Wavy
MOQ:	100 pcs
Production Capacity:	7 Million pcs annually
Surface treatment:	Painting
Colors:	Blue or black ( matt or bright), Made to your order
Hole Type:	Square, Round, Hexagon, Clover Leaf, Optional
Hole Size:	27x27mm, 42x42mm, optional
Working Depth:	200mm, 300mm
Working Width:	3.4M ~ 6.2M
Packing:	Non-fumigation wooden case, metal case according policy of different regions
Feature /Characteristic:	Highest wear life due to special edge making process

DIAMETER		THICKNESS		WEIGHT PLAIN		WEIGHT NOTCHED
MM	INCH	MM	INCH	KG	LBS	KG	LBS
300	12”	3	1/8”	1.6	3.5	1.1	2.4
330	13”	3	1/8”	1.8	4	1.2	2.6
360	14”	3	1/8”	2.3	4.9	1.9	4.1
410	16”	3	1/8”	3.2	7	2.7	5.9
460	18”	3	1/8”	4.3	9.5	3.8	8.4
460	18”	3.5	1/7”	4.6	10.2	4.1	9
510	20”	3.5	1/7”	5.8	12.7	5.6	11.5
510	20”	4	2/13”	6.5	14.4	5.8	12.7
560	22”	4	2/13”	8.1	18	7.5	16.5
560	22”	4.5	2/11”	9	20	8.5	18.7
560	22”	5	1/5”	9.5	21.6	9	19.8
560	22”	6	15/64”	12	26.5	11	24.2
610	24”	5	1/5”	11.3	25	10.5	23.1
610	24”	6	15/64”	14.2	31.5	13	28.6
660	26”	5	1/5”	14.1	31	13	28.6
660	26”	6	15/64”	17	37.5	15.8	34.8
660	26”	7	9/32”	20	43.5	18.5	40.7
660	26”	8	5/16”	23	51	21	46
710	28”	6	15/64”	20	44	18.5	40.7
710	28”	7	9/32”	23	50.6	21.5	46
710	28”	8	5/16”	26	57.2	24	52.1
760	30”	8	5/16”	29	64	28	61.5
760	30”	10	3/8”	35	77	33.5	73.7
810	32”	8	5/16”	35	77	33	75
810	32”	10	3/8”	43	95	40	68
910	36”	12	1/2”	68	150	60	132
960	38”	12	1/2”	77	170	70	154
1016	40”	12	1/2”	82	180	77	169.4
1116	44”	12	1/2”	89	196	84	184.8
