High Quality 3ZT Series Spring Cultivator – Factory Direct Agricultural Tillage Equipment for 25-100HP Tractor

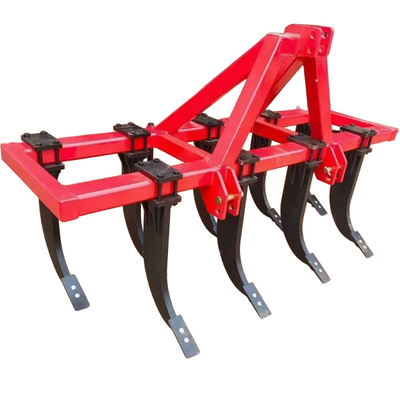

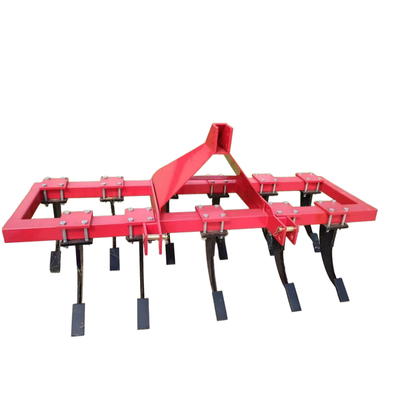

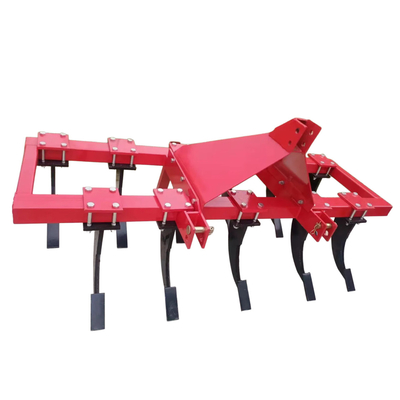

3ZT Series Spring Cultivator

The 3ZT Series Spring Cultivator is designed to meet the demands of the international market. It features a double-spring tension system that allows the tines to flex when encountering obstacles, protecting them by enabling a quick return to their normal working position once the obstruction is cleared.

The machine offers convenient row spacing adjustment and easy control of working depth, making it ideal for cultivating and loosening soil in corn, cotton, and bean fields.

Advantages:

• Available with either shovels or tynes to suit different soil conditions.

• Both shovels and tynes are heat-treated for enhanced hardness and durability, allowing them to withstand impact from rocks, boulders, and other field obstructions.

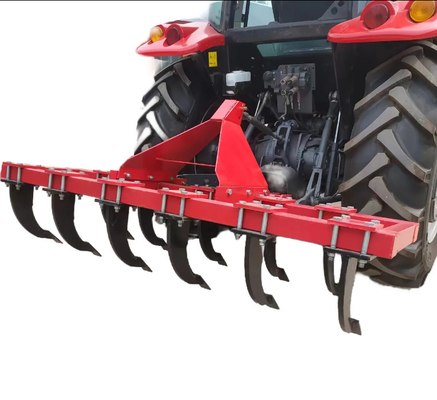

• Designed for use with 25–100 HP tractors, and easily mounted via the tractor’s three-point linkage.

  Model	Unit	3ZT-1.0	3ZT-1.4	3ZT-1.8	3ZT-2.2	3ZT-2.5	3ZT-3.0
  Working width	m	1.0	1.4	1.8	2.2	2.5	3.0
  No. of tines	pcs	5	7	9	11	13	15
  Working depth	mm	100-200	100-200	100-200	100-200	100-200	100-200
  Total weight	kg	260	320	400	490	550	640
  Matched power	hp	18-30	30-40	40-50	50-70	70-90	100-120
  Linkage	Standard three point mounted	Standard three point mounted	Standard three point mounted	Standard three point mounted	Standard three point mounted	Standard three point mounted	Standard three point mounted

  Model Unit TS3ZT-1.0 TS3ZT-1.4 TS3ZT-1.8 TS3ZT-2.2 TS3ZT-2.5 TS3ZT-3.0 Working width m 1.0 1.4 1.8 2.2 2.5 3.0 No. of tines pcs 5 7 9 11 13 15 Working depth mm 100-200 100-200 100-200 100-200 100-200 100-200 Total weight kg 260 320 400 490 550 640 Matched power hp 18-30 30-40 40-50 50-70 70-90 100-120 Linkage Standard three point mounted Standard three point mounted Standard three point mounted Standard three point mounted Standard three point mounted Standard three point mounted Standard three point mountedModel Unit TS3ZT-1.0 TS3ZT-1.4 TS3ZT-1.8 TS3ZT-2.2 TS3ZT-2.5 TS3ZT-3.0 Working width m 1.0 1.4 1.8 2.2 2.5 3.0 No. of tines pcs 5 7 9 11 13 15 Working depth mm 100-200 100-200 100-200 100-200 100-200 100-200 Total weight kg 260 320 400 490 550 640 Matched power hp 18-30 30-40 40-50 50-70 70-90 100-120 Linkage Standard three point mounted Standard three point mounted Standard three point mounted Standard three point mounted Standard three point mounted Standard three point mounted Standard three point mountedModel Unit TS3ZT-1.0 TS3ZT-1.4 TS3ZT-1.8 TS3ZT-2.2 TS3ZT-2.5 TS3ZT-3.0 Working width m 1.0 1.4 1.8 2.2 2.5 3.0 No. of tines pcs 5 7 9 11 13 15 Working depth mm 100-200 100-200 100-200 100-200 100-200 100-200 Total weight kg 260 320 400 490 550 640 Matched power hp 18-30 30-40 40-50 50-70 70-90 100-120 Linkage Standard three point mounted Standard three point mounted Standard three point mounted Standard three point mounted Standard three point mounted Standard three point mounted Standard three point mounted
