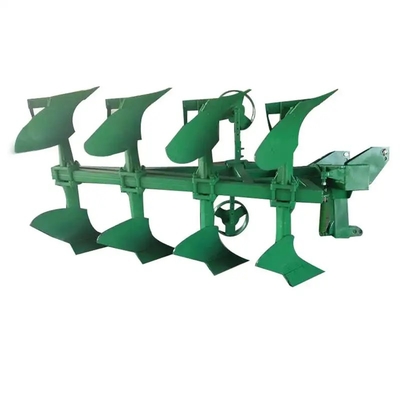

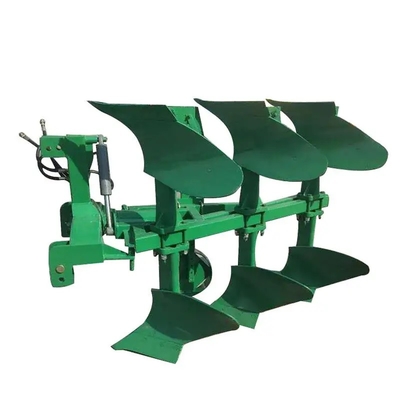

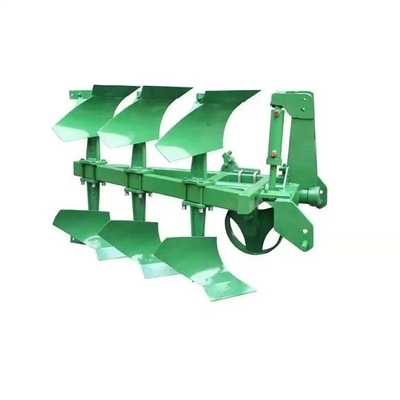

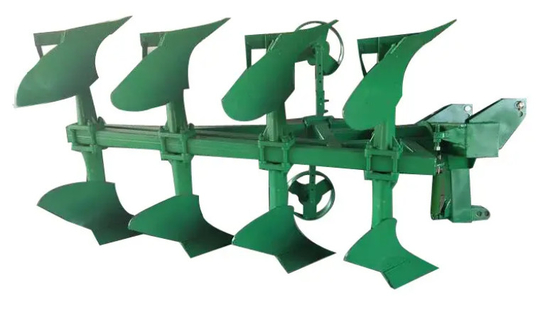

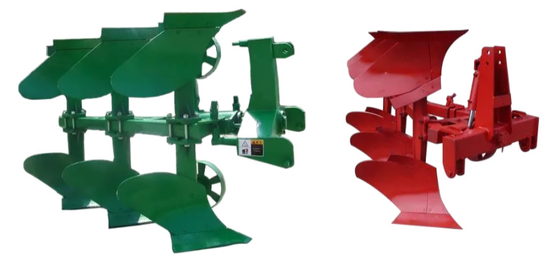

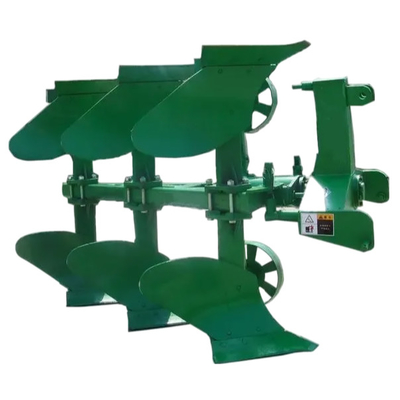

Series of 1LF reversal plough can be mounted to 15-120HP tractors with 2 ways of reverse mechanical (J), and hydraulic(Y). Hydraulic reversed plough can be adjusted for the different tractors, the hydraulic a system is automatically and the operation is smooth without any troubles.
It has compact structure and suitable for working on all various land. With the working performance of the machine, after cultivation, the land surface is leveling, the soil clods well crushed and turned over and the furrows is small.
Model | Unit | 1LF-330 | 1LF-430 | 1LF-530 | 1LF-235 | 1LF-335 | 1LF-435 |
No. of bottoms | pcs | 6 | 8 | 10 | 4 | 6 | 8 |
Working width | mm | 900 | 1200 | 1500 | 700 | 1050 | 1400 |
Working depth | mm | 160-250 | 200-300 | ||||
Matched power | hp | 55-65 | 70-90 | 100-120 | 50-60 | 60-75 | 80-100 |
Overall weight | kg | 550 | 750 | 950 | 450 | 650 | 900 |
Linkage | Standard three point mounted |
