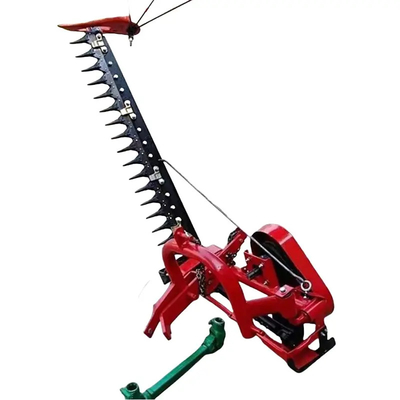

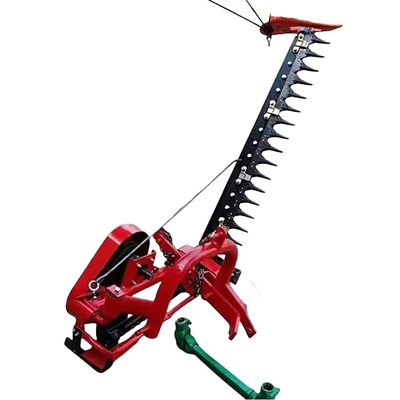

9G Series hitch Sickle Bar Mower Tractor-mounted Grass Cutting Machine for Farm Use

Name: 9G Series hitch Sickle Bar Mower Tractor-mounted Grass Cutting Machine for Farm Use
Brand: Anshan Anza Electronic Power Co.,Ltd.
SKU: 9G-1.6
Availability: InStock

Brand Name:	OEM
Model Number:	9G-1.6
MOQ:	1 pcs
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001

Cutting Width:

1600mm

Cutting Depth:

50-80mm

PTO Speed:

540mm

Weight:

124kg

Tractor Power:

15-20hp

Mounted Cat:

Three Point Mounted

Packaging Details:

Wooden case

Product Description

Model 9G series of sickle bar mower takes advantage of the offset crank link mechanism to drive the cutter

blade mow

grass, and it is adequate for cutting the natural and planted grasses in ranch, mountain and hilly area.

The structure of this machine is compact and the operation is easy and reliable and the residues are lower

after cutting.

Model	9G-1.4	9G-1.6	9G-1.8	9G-2.1
Width of cut (mm)	1400	1600	1800	2100
Height of cut (mm)	50-80
PTO speed (r/min)	540
Weight (kg)	120	124	128	135
Tractor power (hp)	12-20	15-20	20-30	20-30
Mounted cat	Cat l
