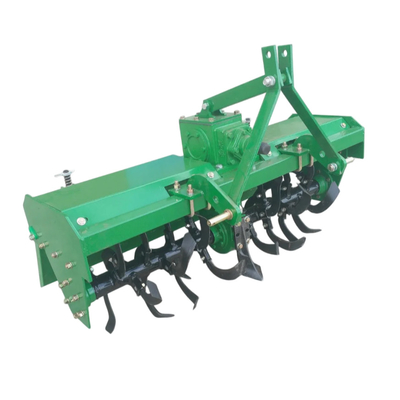

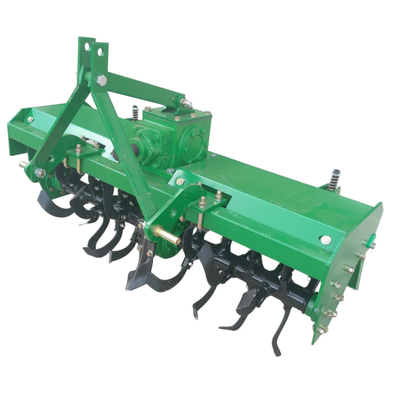

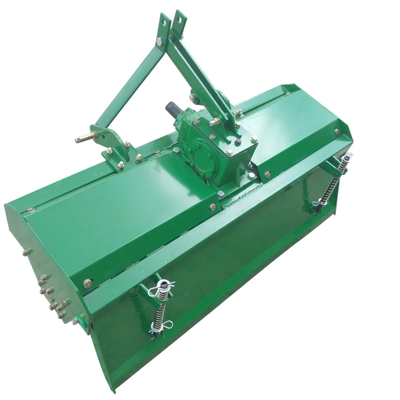

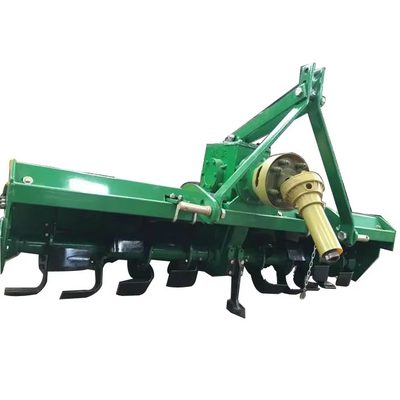

Tractor Mounted 1GQN-90 Rotary Tiller | PTO Driven Rotavator for 15-20HP

Name: Tractor Mounted 1GQN-90 Rotary Tiller | PTO Driven Rotavator for 15-20HP
Brand: Anshan Anza Electronic Power Co.,Ltd.
SKU: 1GQN-90
Availability: InStock

Place of Origin	CHINA
Brand Name	OEM
Certification	ISO9001 CE
Model Number	1GQN-90

Product Details

Payment & Shipping Terms

Minimum Order Quantity

1 pcs

Delivery Time

15-20 days

Payment Terms

T/T

Product Description

Product Description

Drive System: Chain-driven transmission ensures stable power output.
Gearbox: Made of high-strength cast iron for superior durability and resistance to breakage.
Suspension Plate: Reinforced design resists deformation under stress.
Chain Tension Adjustment: Manual adjustment mechanism for easier and more reliable operation.
Rear Deflector: Equipped with additional side protection plates to effectively prevent soil from splashing.
Adjustable Tilling Depth: Allows flexibility to suit different soil and crop requirements.
Construction: Sturdy and stable overall structure ensures long service life.
Compatibility: 3-point linkage with PTO shaft, suitable for Kubota cultivators and rotary tillers.

Model	Matched power(hp)	Working width(cm)	Working depth(cm)	No of knives	Type of knife	Total weight (kg)	*O.D.mm (LWH)*
1GQN/GN-90	15-20	90	10 to 18	20	IT-225	175	900700700
1GQN/GN-110	18-22	110	10 to 18	24	IT-225	180	1050700700
1GQN/GN-125	20-25	125	10 to 18	28	IT-225	195	1360700700
1GQN/GN-140	25-30	140	10 to 18	32	IT-225	200	1490700700
1GQN/GN-150	25-30	150	10 to 18	36	IT-225	210	1590800800
1GQN/GN-160	30-50	160	10 to 18	40	IT-225	230	1690800800
1GQN/GN-170	30-50	170	10 to 18	44	IT-225	230	1650800800
1GQN/GN-180	50-60	180	12 to 20	52	IT-245	350	2010800800
1GQN/GN-200	55-75	200	12 to 20	60	IT-245	380	2100800800
1GQN/GN-220	60-80	220	12 to 20	50	IT-245	400	2303800800
1GQN/GN-230	60-80	230	12 to 20	50	IT-245	420	2410800800
1GQN/GN-250	75-80	250	12 to 20	72	IT-245	450	2600800800
1GQN/GN-280	80-160	280	12 to 20	72	IT-245	490	2950800800
1GQN/GN-300	90-160	300	12 to 20	80	IT-245	600	3150900900
1GQN/GN-350	125-180	350	12 to 20	88	IT-245	890	3650950950

Model Unit 1GQN-100 1GQN-125 1GQN-140 1GQN-150 1GQN-160 1GQN-180 1GQN-200 1GQN-220 1GQN-250 1GQN-300 Matched Power hp 12-15 18-20 20-25 25-30 30-40 50-55 55-75 60-80 75-80 80-120 Working Width cm 100 125 140 150 160 180 200 220 250 300 Working Depth(Dry Land) cm 12-16 12-16 12-16 12-16 12-16 12-18 12-18 12-18 12-18 12-18 Working Depth(Paddy Field) cm 14-16 14-16 14-16 14-16 14-16 14-20 14-20 14-20 14-20 14-20 No. of Blades 18 26 30 34 38 42 46 50 58 70 Type of Blades IT225 IT225 IT225 IT225 IT225 IT245 IT245 IT245 IT245 IT245 Overall Weight kg 200 220 230 240 260 415 430 445 460 520 Dimension(L'W'H) cm 900*1050*950 900*1350*1000 900*1500*100 900*1600*1000 900*1700*1000 1020*1900*1152 1020*2100*1152 1020*2300*1152 1020*2600*1152 1020*3100*1152 Linkage Standard 3 Point Mounted Standard 3 Point Mounted Standard 3 Point Mounted Standard 3 Point Mounted Standard 3 Point Mounted Standard 3 Point Mounted Standard 3 Point Mounted Standard 3 Point Mounted Standard 3 Point Mounted Standard 3 Point MountedModel Unit 1GQN-100 1GQN-125 1GQN-140 1GQN-150 1GQN-160 1GQN-180 1GQN-200 1GQN-220 1GQN-250 1GQN-300 Matched Power hp 12-15 18-20 20-25 25-30 30-40 50-55 55-75 60-80 75-80 80-120 Working Width cm 100 125 140 150 160 180 200 220 250 300 Working Depth(Dry Land) cm 12-16 12-16 12-16 12-16 12-16 12-18 12-18 12-18 12-18 12-18 Working Depth(Paddy Field) cm 14-16 14-16 14-16 14-16 14-16 14-20 14-20 14-20 14-20 14-20 No. of Blades 18 26 30 34 38 42 46 50 58 70 Type of Blades IT225 IT225 IT225 IT225 IT225 IT245 IT245 IT245 IT245 IT245 Overall Weight kg 200 220 230 240 260 415 430 445 460 520 Dimension(L'W'H) cm 900*1050*950 900*1350*1000 900*1500*100 900*1600*1000 900*1700*1000 1020*1900*1152 1020*2100*1152 1020*2300*1152 1020*2600*1152 1020*3100*1152 Linkage Standard 3 Point Mounted Standard 3 Point Mounted Standard 3 Point Mounted Standard 3 Point Mounted Standard 3 Point Mounted Standard 3 Point Mounted Standard 3 Point Mounted Standard 3 Point Mounted Standard 3 Point Mounted Standard 3 Point MountedModel Unit 1GQN-100 1GQN-125 1GQN-140 1GQN-150 1GQN-160 1GQN-180 1GQN-200 1GQN-220 1GQN-250 1GQN-300 Matched Power hp 12-15 18-20 20-25 25-30 30-40 50-55 55-75 60-80 75-80 80-120 Working Width cm 100 125 140 150 160 180 200 220 250 300 Working Depth(Dry Land) cm 12-16 12-16 12-16 12-16 12-16 12-18 12-18 12-18 12-18 12-18 Working Depth(Paddy Field) cm 14-16 14-16 14-16 14-16 14-16 14-20 14-20 14-20 14-20 14-20 No. of Blades 18 26 30 34 38 42 46 50 58 70 Type of Blades IT225 IT225 IT225 IT225 IT225 IT245 IT245 IT245 IT245 IT245 Overall Weight kg 200 220 230 240 260 415 430 445 460 520 Dimension(L'W'H) cm 900*1050*950 900*1350*1000 900*1500*100 900*1600*1000 900*1700*1000 1020*1900*1152 1020*2100*1152 1020*2300*1152 1020*2600*1152 1020*3100*1152 Linkage Standard 3 Point Mounted Standard 3 Point Mounted Standard 3 Point Mounted Standard 3 Point Mounted Standard 3 Point Mounted Standard 3 Point Mounted Standard 3 Point Mounted Standard 3 Point Mounted Standard 3 Point Mounted Standard 3 Point Mounted
