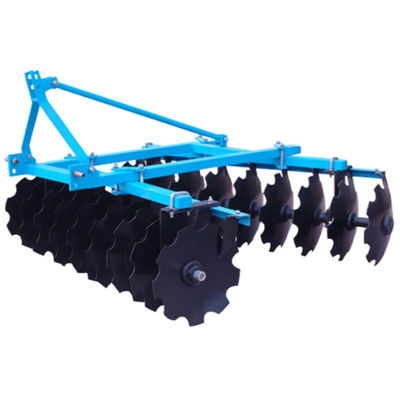

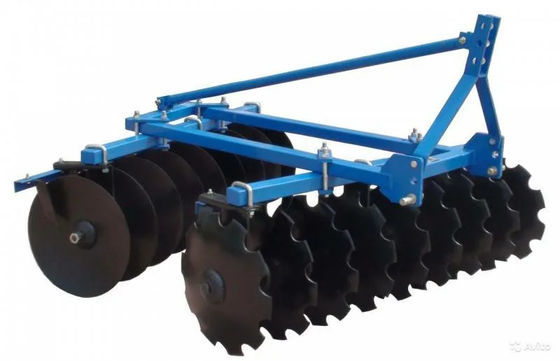

Three Point Mounted Farming Equipment 1BQX Series Mounted Light-Duty Disc Harrow

Name: Three Point Mounted Farming Equipment 1BQX Series Mounted Light-Duty Disc Harrow
Brand: Anshan Anza Electronic Power Co.,Ltd.
SKU: 1BQX
Availability: InStock

Place of Origin	CHINA
Brand Name	OEM
Certification	ISO9001
Model Number	1BQX

Product Details

Payment & Shipping Terms

Minimum Order Quantity

1 pcs

Packaging Details

Wooden case

Delivery Time

15-20 days

Payment Terms

T/T

Supply Ability

5000pcs per month

Product Description

Disc Harrow

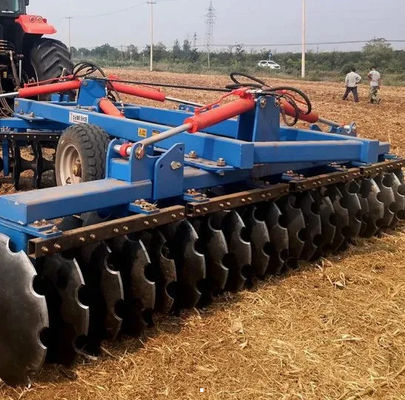

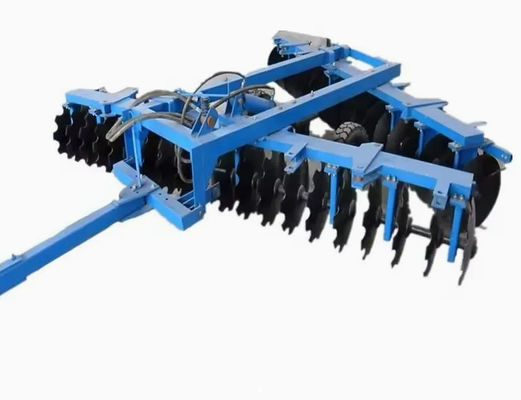

1BZ series hydraulic offset heavy duty disc harrow has the high working efficiency , strong capability into the soil, and after
plough loosen soil. This harrow can highly adapt to the sticky heavy soil, uncultivated field and those plots of many weeds. It is
made of square tubes welded together which ensures simple structure and good rigidity. The harrow is also equipped with hydraulic
lifting rubber wheels for convenient transportation and small turning radius, thus the production efficiency and lifetime of the
harrow is dramatically improved.

model	1BQDX-1.3	1BQDX-1.6	1BQDX- 2.2	1BQDX-2.6	1BQDX-3.0	1BQDX-3.4
Tillage	1400	1800	2200	2600	3000	3400
Deep cultivation	100-140
Rake blade diameter	460mm/ 18inch
Thickness of rake blade	3
Number of ra ke blades	16	20	twenty four	28	32	36
weight	340	390	440	490	495	530
Supporting power	30-35	35-45	45-55	60-75	75-80	80-95
Mounting form	Three - pointed mounted with tractor
