Three Point Mounted Farming Equipment Heavy Duty Disc Harrow

Name: Three Point Mounted Farming Equipment Heavy Duty Disc Harrow
Brand: Anshan Anza Electronic Power Co.,Ltd.
SKU: 1BJ
Availability: InStock

Brand Name:	OEM
Model Number:	1BJ
MOQ:	1 pcs
Payment Terms:	T/T
Supply Ability:	5000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001

Packaging Details:

Standard export packaging

Supply Ability:

5000pcs per month

Product Description

The 1BJ Series Folding Hydraulic Offset Middle Harrow is designed for breaking up clods in heavy, sticky soils after tillage,

as well as for seedbed preparation, soil scarification, and clearing plant stubble before cultivation in lighter soils.

It features a robust structure, high working efficiency, excellent soil penetration, effective leveling and scarification,

a horizontal hinge mechanism, and the convenience of wide working width and narrow transport width.

Model	1BJ-3.0	1BJ-3.4	1BJ-4.0	1BJ-4.4	1BJ-5.3
Working width(mm)	3000	3400	4000	4400	5300
Working depth(mm)	140
Diameter of disc	560mm / 22''
Thickness of disc(mm)	4
No. Of disc(pcs)	28	32	36	40	48
Weight(kg)	1300	1500	1700	2000	2300
Matched power(hp)	70-90	80-100	100-120	120-140	140-160
Linkage	Hydraulic trailed with tractor

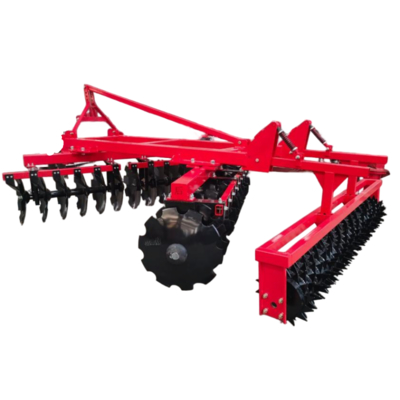

Three Point Mounted Farming Equipment Heavy Duty Disc Harrow 0

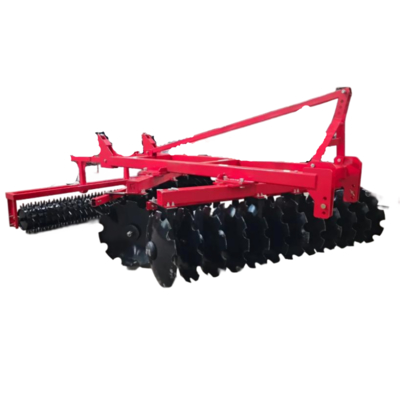

Three Point Mounted Farming Equipment Heavy Duty Disc Harrow 1

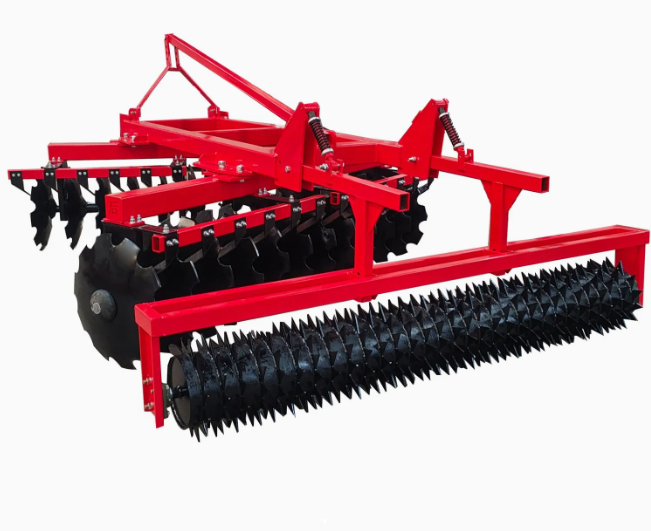

Three Point Mounted Farming Equipment Heavy Duty Disc Harrow 2

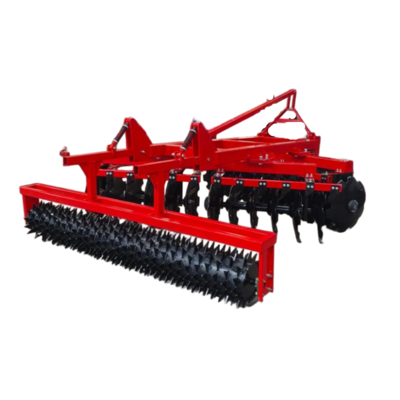

Three Point Mounted Farming Equipment Heavy Duty Disc Harrow 3

Three Point Mounted Farming Equipment Heavy Duty Disc Harrow 4

Three Point Mounted Farming Equipment Heavy Duty Disc Harrow 5

Three Point Mounted Farming Equipment Heavy Duty Disc Harrow 6

Three Point Mounted Farming Equipment Heavy Duty Disc Harrow 7

Three Point Mounted Farming Equipment Heavy Duty Disc Harrow 8

Three Point Mounted Farming Equipment Heavy Duty Disc Harrow 9

Three Point Mounted Farming Equipment Heavy Duty Disc Harrow 10
