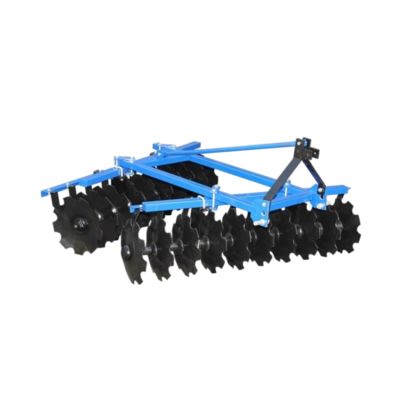

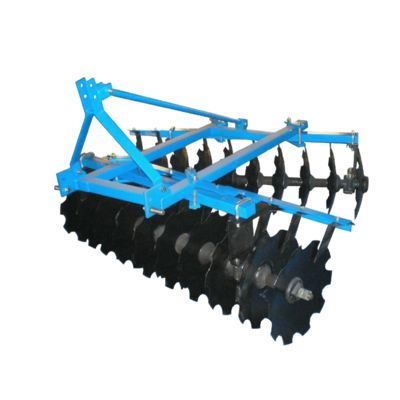

Agriculture Disc Harrow of 16PCS Discs for Mounted Tractor 1BQX-1.5

Agriculture Disc Harrow of 16PCS Discs for Mounted Tractor 1BQX-1.5

Agriculture Disc Harrow of 16PCS Discs for Mounted Tractor 1BQX-1.5

Brand Name: OEM
Model Number: 1BQX-1.5
MOQ: 1 pcs
Payment Terms: T/T
Supply Ability: 5000pcs per month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
ISO9001 CE
Packaging Details:
Wooden case
Supply Ability:
5000pcs per month
Product Description

The series Light-duty Disc Harrow frame are made of qualified steel tube, Their structures are simple and reasonable, strong and durable, convenient to operate, easy to maintain and efficient in pulverizing and penetrating into the soil and leaves the land with a smooth, even tilth. All these satisfy the agricultural requirements of intensive cultivation.

The 1BQX series suspension Light-duty Disc Harrow's front and rear gangs are all assembled with scalloped disc, could be used with from 12HP to 80HP type tractors.

The 1BQX series Light-duty Disc Harrow are suitable for pulverized and loosening clods after ploughing and for planning the land before sowing on cultivated land. The machines can make soil and fertilizer mix up, and clear away the stump of plants on light or medium soil and preparing seed bed for planting.

Model Unit 1BQX-1.1 1BQX-1.3 1BQX-1.5 1BQX-1.7 1BQX-1.9 1BQX-2.3
Working width m 1.1 1.3 1.5 1.7 1.9 2.3
Working depth mm 80-120 80-120 80-120 80-120 80-120 80-120
No. of discs pcs 12 14 16 18 20 24
Disc diameter mm 460 460 460 460 460 460
Weight kg 200 220 240 260 310 360
Tractor power hp 12-20 15-25 25-35 30-35 35-45 50-60
