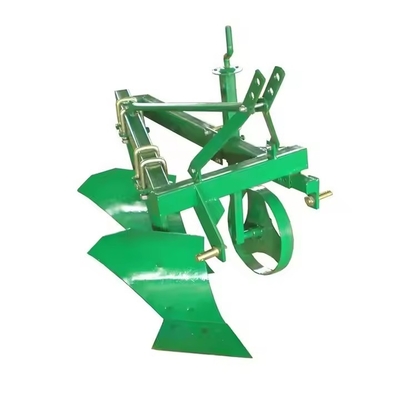

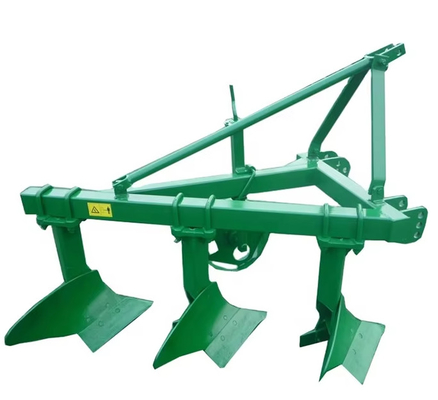

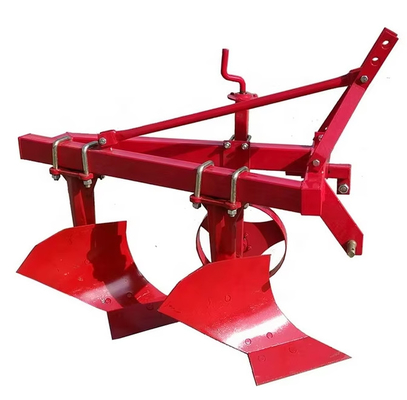

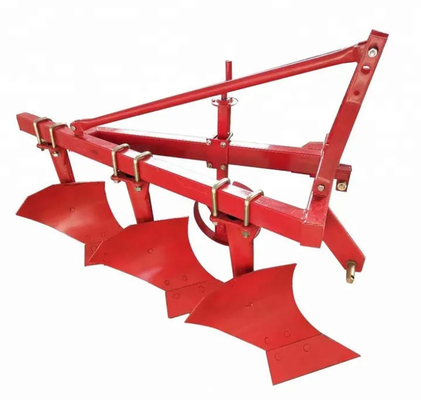

1L series share plow is a four-wheel tractor mounted plow, mainly used for plowing loam,
the sand loam , cultivated and dry land.
Advantages
1) This tractor farm plow has good efficiency
2) The mouldboard plow is in simple adjustment
3) Wide scope of application
4) The width of plow share could be 20cm,25cm,30cm,35cm.
5) Material of plough tip is 65Mn steel
6) Working depth could be adjusted
Model | 1L-220 | 1L-320 | 1L-420 | 1L-520 | 1L-225 | 1L-325 | 1L-425 | 1L-525 |
Width of cut (mm) | 400 | 600 | 800 | 1000 | 500 | 750 | 1000 | 1250 |
Depth of cut (mm) | 200~250 | |||||||
Farrow | 2 | 3 | 4 | 5 | 2 | 3 | 4 | 5 |
Weight (kg) | 64 | 100 | 130 | 170 | 125 | 170 | 240 | 270 |
Tractor power (hp) | 15~25 | 25~35 | 35~45 | 50~60 | 25 | 40 | 50 | 65 |
Mounted cat | Three point mounted |
Model | 1L-330 | 1L-430 | 1L-530 | 1L-335 | 1L-435 | 1L-535 |
Width of cut (mm) | 900 | 1200 | 1500 | 1050 | 1400 | 1750 |
Depth of cut (mm) | 220-270 | |||||
Farrow | 3 | 4 | 5 | 3 | 4 | 5 |
Weight (kg) | 230 | 330 | 420 | 300 | 470 | 520 |
Tractor power (hp) | 50 | 70 | 80 | 55 | 75 | 90 |
Mounted Cat | Cat II |
