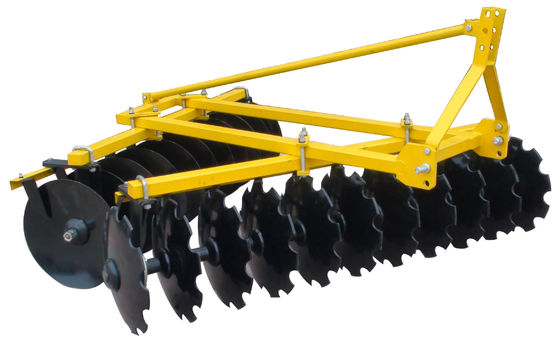

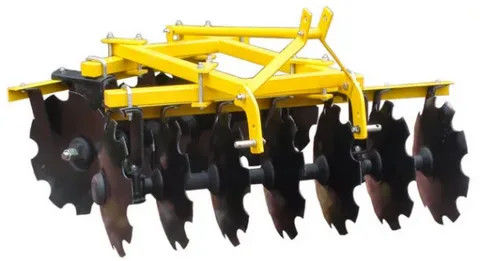

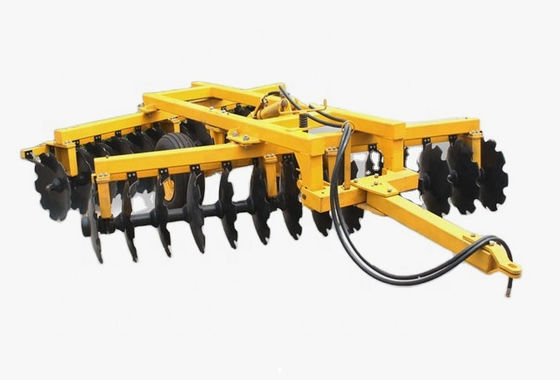

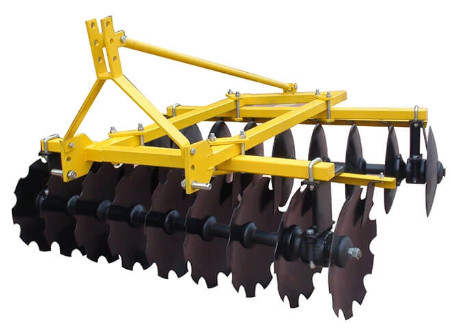

1bjx Tractor Disc Harrow With Suspension Middle Harrow Notch Blade For Agriculture
  • 1bjx Tractor Disc Harrow With Suspension Middle Harrow Notch Blade For Agriculture
  • 1bjx Tractor Disc Harrow With Suspension Middle Harrow Notch Blade For Agriculture
  • 1bjx Tractor Disc Harrow With Suspension Middle Harrow Notch Blade For Agriculture
  • 1bjx Tractor Disc Harrow With Suspension Middle Harrow Notch Blade For Agriculture

1bjx Tractor Disc Harrow With Suspension Middle Harrow Notch Blade For Agriculture

Place of Origin CHINA
Brand Name OEM
Certification ISO9001 CE
Model Number 1BJX
Product Details
Payment & Shipping Terms
Minimum Order Quantity
1 pcs
Packaging Details
Wooden case
Delivery Time
15-20 days
Payment Terms
T/T
Supply Ability
5000pcs per month
Product Description

 The series Light-duty Disc Harrow frame are made of qualified steel tube, Their structures are simple and reasonable, strong and durable, convenient to operate, easy to maintain and efficient in pulverizing and penetrating into the soil and leaves the land with a smooth, even tilth. All these satisfy the agricultural requirements of intensive cultivation.

The 1BJX series suspension Middle-duty Disc Harrow's front and rear gangs are all assembled with scalloped disc, could be used with from 35HP to 80HP type tractors.

The 1BJX series Middle-duty Disc Harrow are suitable for pulverized and loosening clods after ploughing and for planning the land before sowing on cultivated land. The machines can make soil and fertilizer mix up, and clear away the stump of plants on light or medium soil and preparing seed bed for planting.



Model Unit 1BJX-1.6 1BJX-1.8 1BJX-2.0 1BJX-2.2 1BJX-2.4 1BJX-2.5
Working width m 1.6 1.8 2.0 2.2 2.4 2.5
Working depth mm 140 140 140 140 140 140
No. of discs pcs 14 16 18 20 22 24
Disc diameter mm 560 560 560 560 560 560
Weight kg 353 390 434 463 604 760
Tractor power hp 35 45 50 55-65 65-75 80
