1BZ series Agricultural Machinery 1bz Hydraulic Heavy Duty Disc Harrow Tractor Implements Disc Harrow

Place of Origin	CHINA
Brand Name	OEM
Certification	ISO9001
Model Number	1BZ

Product Details

Payment & Shipping Terms

Minimum Order Quantity

1 pcs

Packaging Details

Wooden case

Delivery Time

15-20 days

Payment Terms

T/T

Product Description

HYDRAULIC TRAILED HEAVY -DUTY DISC HARROW

1BZ series agricultural machinery heavy-duty offset disc harrow are mainly used for cleaning away stuble of plants before tillage, or crushing clods after tillage on uncultivated land and in stickly heavy clay soil fields, they can also be used as a plough for primary tillage in dry cultivated fields.

Basic Info.

Model NO.

1BZ-2.2/2.5/3.0

Application Field

Agriculture

Farming Policy

Dry Cultivating Machinery

Power Source

Tractor

Operation

Soil Preparation Machinery, Fixed Operation

Traction Type

Traction

Drive Type

Tractor Trailed

Arbor Configuration

Horizontal Axis

Color

Red, Green, Blue, Yellow

Warranty

1 Year

Model

1bz-2.5

Working Width

2500mm

Working Depth

200mm

Qty of Discs

Total Weight

1500kg

Matched Power

90-130HP

Disc Size

26"X6

Disc Material

65mn Steel

Transport Package

Iron Box, Iron Frame

Specification

High quality steel

Trademark

YCHS

Origin

Yucheng City, Shangdong Province

HS Code

8432210000

Production Capacity

300sets/Month

Product Description

Agriculture machinery Heavy duty hydraulic disc harrow for Massey Ferguson tractor

PRODUCT INTRODUCTION

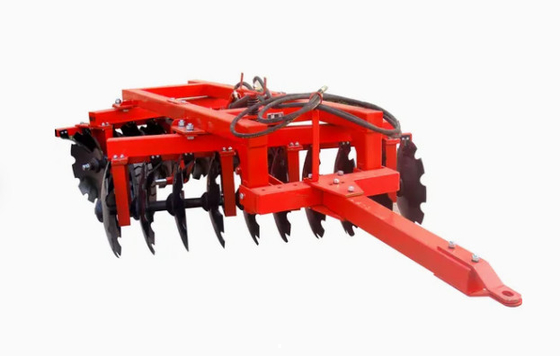

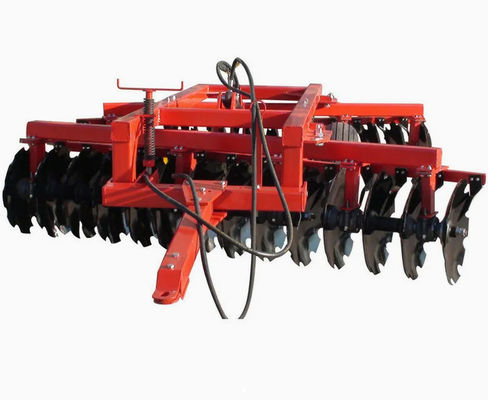

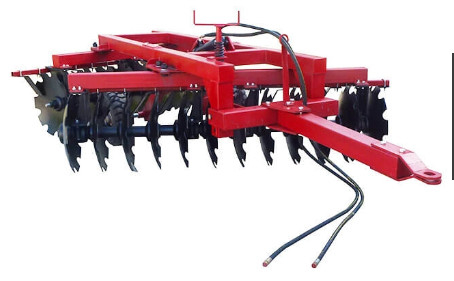

This tractor implments heavy duty offset hydraulic disc harrow for sale is well suitable for heavy clay soil, waste land and weedy field as well,mainly suitable for stubble cleaning before farming , it can break the hardened soil and return the chopped straw to the soil, and also can crash the soil after tillage and level the land. The heavy-duty disc harrow can cultivate the soil instead of plow.

• This tractor trailed hydraulic heavy duty disc harrow is trailed for 70-180hp tractor.

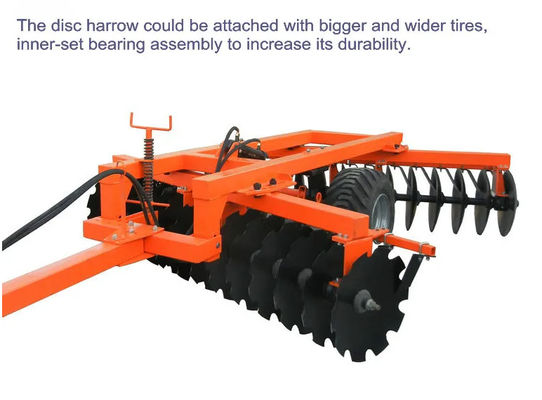

• Own hydraulic system to lift and down the transport wheel freely.
• High quality of difunctional oil cylinder.
• Compact and strong structure make the machine have long service life.
• Widely working width of this heavy disc harrow to be 1.8-5.3m.

TECHNICAL SPECIFICATION

Model	1BZ-1.8	1BZ-2.2	1BZ-2.5	1BZ-3.0	1BZ-3.4	1BZ-4.0	1BZ-5.3
working width	1800mm	2200mm	2500mm	3000mm	3400mm	4000mm	5300mm
working depth	200mm
Q'ty of disc	16	20	24	28	32	36	48
Total weight	1160kg	1250kg	1350kg	1430kg	1550kg	1900kg	2500kg
Matched power	70hp	80hp	90hp	100hp	120hp	150hp	180hp
Linkage	Tractor Trailed
